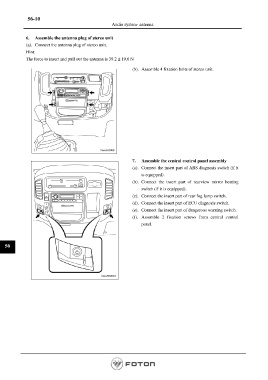

P. 1268
56-10
Audio system- antenna
6. Assemble the antenna plug of stereo unit
(a). Connect the antenna plug of stereo unit.
Hint:
The force to insert and pull out the antenna is 39.2 ± 19.6 N
(b). Assemble 4 fixation bolts of stereo unit.
7. Assemble the central control panel assembly
(a). Connect the insert part of ABS diagnosis switch (if it
is equipped).
(b). Connect the insert part of rearview mirror heating
switch (if it is equipped).
(c). Connect the insert part of rear fog lamp switch.
(d). Connect the insert part of ECU diagnosis switch.
(e). Connect the insert part of dangerous warning switch.
(f). Assemble 2 fixation screws from central control
panel.
56
