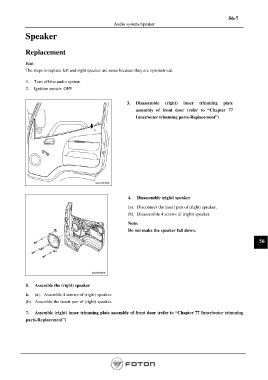

Page 1265 - Workshop Manual - Aumark (BJ1051)

56-7
Audio system-Speaker

Speaker

Replacement

Hint:
The steps to replace left and right speaker are same because they are symmetrical.

1. Turn off the audio system
2. Ignition switch: OFF

3. Disassemble (right) inner trimming plate
assembly of front door (refer to “Chapter 77
Inner/outer trimming parts-Replacement”)

4. Disassemble (right) speaker

(a). Disconnect the insert part of (right) speaker.
(b). Disassemble 4 screws of (right) speaker.
Note:
Do not make the speaker fall down.

56

5. Assemble the (right) speaker

6. (a). Assemble 4 screws of (right) speaker.
(b). Assemble the insert part of (right) speaker.

7. Assemble (right) inner trimming plate assembly of front door (refer to “Chapter 77 Inner/outer trimming
parts-Replacement”)
