P. 1262

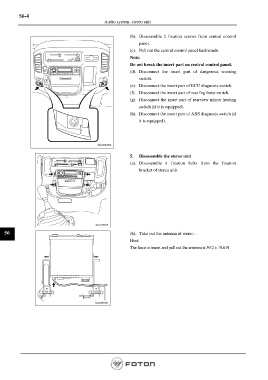

56-4
Audio system- stereo unit
(b). Disassemble 2 fixation screws from central control
panel.
(c). Pull out the central control panel backwards.
Note:
Do not break the insert part on central control panel.
(d). Disconnect the insert part of dangerous warning
switch.
(e). Disconnect the insert part of ECU diagnosis switch.
(f). Disconnect the insert part of rear fog lamp switch.
(g). Disconnect the insert part of rearview mirror heating
switch (if it is equipped).
(h). Disconnect the insert part of ABS diagnosis switch (if
it is equipped).
5. Disassemble the stereo unit
(a). Disassemble 4 fixation bolts from the fixation
bracket of stereo unit.
56 (b). Take out the antenna of stereo .
Hint:
The force to insert and pull out the antenna is 39.2 ± 19.6 N
