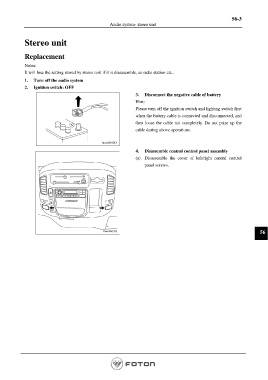

Page 1261 - Workshop Manual - Aumark (BJ1051)
P. 1261
56-3
Audio system- stereo unit
Stereo unit
Replacement
Notes:
It will lose the setting stored by stereo unit if it is disassemble, as radio station etc..
1. Turn off the audio system
2. Ignition switch: OFF
3. Disconnect the negative cable of battery
Hint:
Please turn off the ignition switch and lighting switch first
when the battery cable is connected and disconnected, and
then loose the cable nut completely. Do not prize up the
cable during above operations.
4. Disassemble central control panel assembly
(a). Disassemble the cover of left/right central control
panel screws.
56
