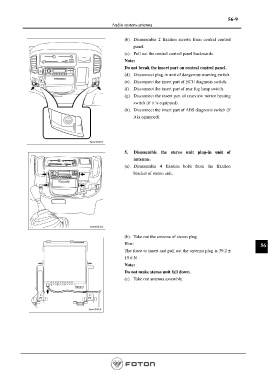

56-9
Audio system-antenna

(b). Disassemble 2 fixation screws from central control
panel.
(c). Pull out the central control panel backwards.
Note:
Do not break the insert part on central control panel.
(d). Disconnect plug-in unit of dangerous warning switch.
(e). Disconnect the insert part of ECU diagnosis switch.
(f). Disconnect the insert part of rear fog lamp switch.
(g). Disconnect the insert part of rearview mirror heating
switch (if it is equipped).
(h). Disconnect the insert part of ABS diagnosis switch (if
it is equipped).

5. Disassemble the stereo unit plug-in unit of
antenna；
(a). Disassemble 4 fixation bolts from the fixation
bracket of stereo unit.

(b). Take out the antenna of stereo plug
Hint: 56
The force to insert and pull out the antenna plug is 39.2 ±
19.6 N
Note:
Do not make stereo unit fall down.
(c). Take out antenna assembly.
