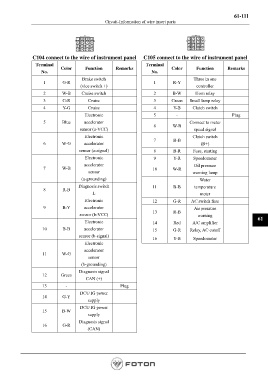

Circuit-Information of wire insert parts

C104 connect to the wire of instrument panel C105 connect to the wire of instrument panel
Terminal Terminal
Color Function Remarks Color Function Remarks
No. No.
Brake switch Three in one
1 G-R 1 R-Y
(vice switch +) controller
2 W-B Cruise switch 2 B-W Horn relay
3 G-R Cruise 3 Green Small lamp relay
4 Y-G Cruise 4 Y-B Clutch switch
Electronic 5 - Plug
5 Blue accelerator Connect to meter
6 W-B
sensor (a-VCC) speed signal
Electronic Clutch switch
7 B-B
6 W-G accelerator (B+)
sensor (a-signal) 8 B-R Fuse, starting
Electronic 9 Y-R Speedometer
accelerator Oil pressure
7 W-B 10 W-R
sensor warning lamp
(a-grounding) Water
Diagnosis switch 11 B-B temperature
8 R-B
L meter
Electronic 12 G-R AC switch fuse
9 B-Y accelerator Air pressure
13 R-B
sensor (b-VCC) warning
Electronic 14 Red A/C amplifier 61
10 B-B accelerator 15 G-R Relay, AC cutoff
sensor (b-signal) 16 Y-B Speedometer
Electronic
accelerator
11 W-G
sensor
(b-grounding)
Diagnosis signal
12 Green
CAN (+)
13 - Plug
DCU IG power
14 G-Y
supply
DCU IG power
15 B-W
supply
Diagnosis signal
16 G-R
(CAN)
