P. 1384
61-112

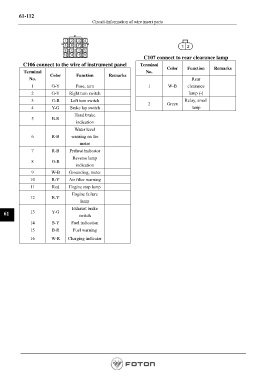

Circuit-Information of wire insert parts
C107 connect to rear clearance lamp
C106 connect to the wire of instrument panel Terminal
Color Function Remarks
Terminal No.
Color Function Remarks
No. Rear
1 G-Y Fuse, turn 1 W-B clearance
2 G-Y Right turn switch lamp (-)
3 G-B Left turn switch Relay, small
2 Green
4 Y-G Brake lap switch lamp
Hand brake
5 B-R
indication
Water level
6 R-B warning on the
meter
7 R-B Preheat indicator
Reverse lamp
8 G-R
indication
9 W-B Grounding, meter
10 R-Y Air filter warning
11 Red Engine stop lamp
Engine failure
12 B-Y
lamp
Exhaust brake
61 13 Y-G switch
14 B-Y Fuel indication
15 B-R Fuel warning
16 W-R Charging indicator
