61-117

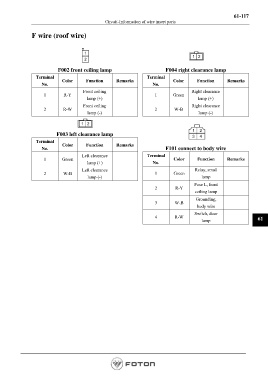

Circuit-Information of wire insert parts
F wire (roof wire)
F002 front ceiling lamp F004 right clearance lamp
Terminal Terminal
Color Function Remarks Color Function Remarks
No. No.
Front ceiling Right clearance
1 R-Y 1 Green
lamp (+) lamp (+)
Front ceiling Right clearance
2 R-W 2 W-B
lamp (-) lamp (-)
F003 left clearance lamp
Terminal
Color Function Remarks
No. F101 connect to body wire
Left clearance Terminal
1 Green Color Function Remarks
lamp (+) No.
Left clearance Relay, small
2 W-B 1 Green
lamp (-) lamp
2 R-Y Fuse L, front
ceiling lamp
Grounding,
3 W-B
body wire
Switch, door
4 R-W 61
lamp
