61-121

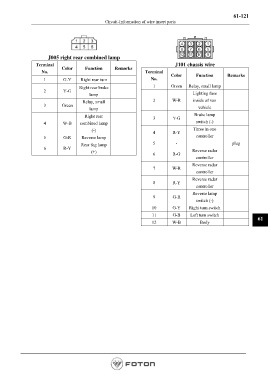

Circuit-Information of wire insert parts
J005 right rear combined lamp
Terminal J101 chassis wire
Color Function Remarks
No. Terminal
Color Function Remarks
1 G-Y Right rear turn No.
Right rear brake 1 Green Relay, small lamp
2 Y-G
lamp Lighting fuse
Relay, small 2 W-R inside of van
3 Green vehicle
lamp
Right rear 3 Y-G Brake lamp
4 W-B combined lamp switch (-)
(-) Three in one
4 R-Y
5 G-R Reverse lamp controller
Rear fog lamp 5 - plug
6 R-Y
(+) Reverse radar
6 R-G
controller
7 W-R Reverse radar
controller
Reverse radar
8 R-Y
controller
Reverse lamp
9 G-R
switch (-)
10 G-Y Right turn switch
11 G-B Left turn switch
61
12 W-B Body
