P. 1396
61-124

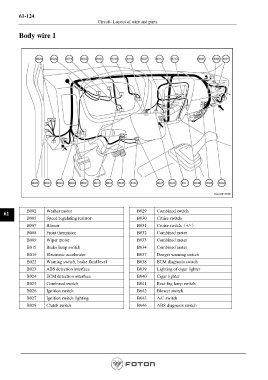

Circuit- Layout of wire and parts
Body wire 1
61 B002 Washer motor B029 Combined switch
B005 Speed regulating resistor B030 Cruise switch
B007 Blower B031 Cruise switch（+/-）
B008 Front thermistor B032 Combined meter
B009 Wiper motor B033 Combined meter
B015 Brake lamp switch B034 Combined meter
B016 Electronic accelerator B037 Danger warning switch
B022 Warning switch, brake fluid level B038 ECM diagnosis switch
B023 ABS detection interface B039 Lighting of cigar lighter
B024 ECM detection interface B040 Cigar lighter
B025 Combined switch B041 Rear fog lamp switch
B026 Ignition switch B042 Blower switch
B027 Ignition switch lighting B043 A/C switch
B028 Clutch switch B046 ABS diagnosis switch
