P. 1398
61-126

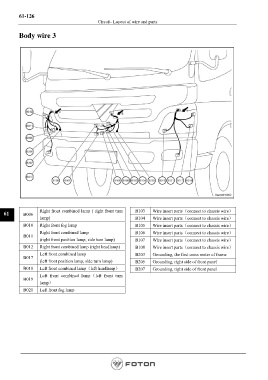

Circuit- Layout of wire and parts
Body wire 3
61 B006 Right front combined lamp ( right front turn B103 Wire insert parts（connect to chassis wire）
lamp) B104 Wire insert parts（connect to chassis wire）
B010 Right front fog lamp B105 Wire insert parts（connect to chassis wire）
Right front combined lamp B106 Wire insert parts（connect to chassis wire）
B011
(right front position lamp, side turn lamp) B107 Wire insert parts（connect to chassis wire）
B012 Right front combined lamp (right headlamp) B108 Wire insert parts（connect to chassis wire）
Left front combined lamp B203 Grounding, the first cross meter of frame
B017
(left front position lamp, side turn lamp) B205 Grounding, right side of front panel
B018 Left front combined lamp（left headlamp） B207 Grounding, right side of front panel
Left front combined lamp（left front turn
B019
lamp）
B021 Left front fog lamp
