P. 1397
61-125

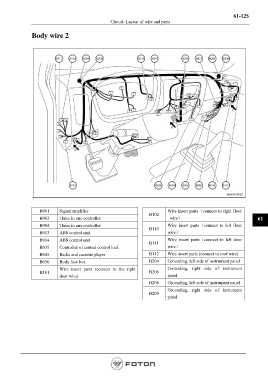

Circuit- Layout of wire and parts
Body wire 2
B001 Signal amplifier Wire insert parts(connect to right floor
B102
B003 Three in one controller wire) 61
B004 Three in one controller Wire insert parts(connect to left floor
B110
B013 ABS control unit wire)
B014 ABS control unit Wire insert parts(connect to left door
B111
B035 Controller of central control lock wire)
B045 Radio and cassette player B112 Wire insert parts (connect to roof wire)
B050 Body fuse box B204 Grounding, left side of instrument panel
Wire insert parts (connect to the right Grounding, right side of instrument
B101 B206
door wire) panel
B208 Grounding, left side of instrument panel
Grounding, right side of instrument
B209
panel
