P. 1399
61-127

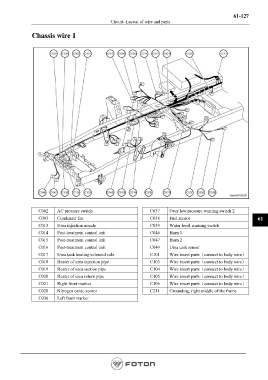

Circuit- Layout of wire and parts
Chassis wire 1
C002 AC pressure switch C037 Over low pressure warning switch 2
C003 Condenser fan C038 Fuel sensor 61
C013 Urea injection nozzle C039 Water level warning switch
C014 Post-treatment control unit C046 Horn 1
C015 Post-treatment control unit C047 Horn 2
C016 Post-treatment control unit C049 Urea tank sensor
C017 Urea tank heating solenoid vale C101 Wire insert parts（connect to body wire）
C018 Heater of urea injection pipe C103 Wire insert parts（connect to body wire）
C019 Heater of urea suction pipe C104 Wire insert parts（connect to body wire）
C020 Heater of urea return pipe C105 Wire insert parts（connect to body wire）
C021 Right front marker C106 Wire insert parts（connect to body wire）
C028 Nitrogen oxide sensor C211 Grounding, right middle of the frame
C036 Left front marker
