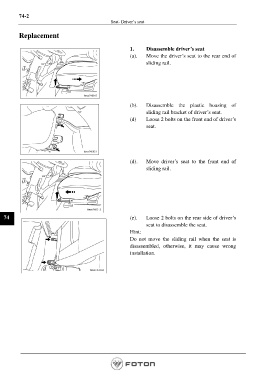

Page 1482 - Workshop Manual - Aumark (BJ1051)

74-2
Seat- Driver’s seat

Replacement

1. Disassemble driver’s seat
(a). Move the driver’s seat to the rear end of
sliding rail.

(b). Disassemble the plastic housing of
sliding rail bracket of driver’s seat.
(d) Loose 2 bolts on the front end of driver’s
seat.

(d). Move driver’s seat to the front end of
sliding rail.

74 (e). Loose 2 bolts on the rear side of driver’s
seat to disassemble the seat.
Hint:
Do not move the sliding rail when the seat is
disassembled, otherwise, it may cause wrong
installation.

Page 1482
