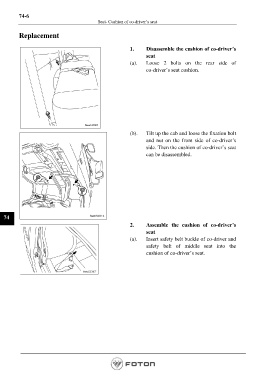

Page 1486 - Workshop Manual - Aumark (BJ1051)
P. 1486
74-6
Seat- Cushion of co-driver’s seat
Replacement
1. Disassemble the cushion of co-driver’s
seat
(a). Loose 2 bolts on the rear side of
co-driver’s seat cushion.
(b). Tilt up the cab and loose the fixation bolt
and nut on the front side of co-driver’s
side. Then the cushion of co-driver’s seat
can be disassembled.
74
2. Assemble the cushion of co-driver’s
seat
(a). Insert safety belt buckle of co-driver and
safety belt of middle seat into the
cushion of co-driver’s seat.
Page 1486
