Page 1483 - Workshop Manual - Aumark (BJ1051)
P. 1483
74-3

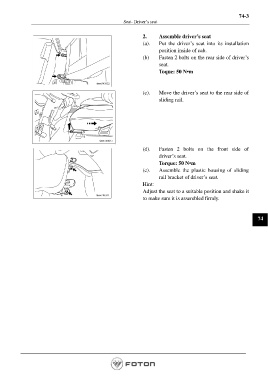

Seat- Driver’s seat
2. Assemble driver’s seat
(a). Put the driver’s seat into its installation
position inside of cab.
(b) Fasten 2 bolts on the rear side of driver’s
seat.
Toque: 50 N•m
(c). Move the driver’s seat to the rear side of
sliding rail.
(d). Fasten 2 bolts on the front side of
driver’s seat.
Torque: 50 N•m
(e). Assemble the plastic housing of sliding
rail bracket of driver’s seat.
Hint:
Adjust the seat to a suitable position and shake it
to make sure it is assembled firmly.
74
Page 1483
