P. 1492

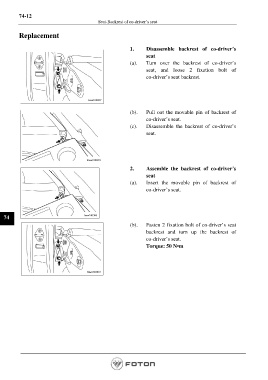

74-12
Seat-Backrest of co-driver’s seat
Replacement
1. Disassemble backrest of co-driver’s
seat
(a). Turn over the backrest of co-driver’s
seat, and loose 2 fixation bolt of
co-driver’s seat backrest.
(b). Pull out the movable pin of backrest of
co-driver’s seat.
(c). Disassemble the backrest of co-driver’s
seat.
2. Assemble the backrest of co-driver’s
seat
(a). Insert the movable pin of backrest of
co-driver’s seat.
74
(b). Fasten 2 fixation bolt of co-driver’s seat
backrest and turn up the backrest of
co-driver’s seat.
Torque: 50 N•m
