74-15

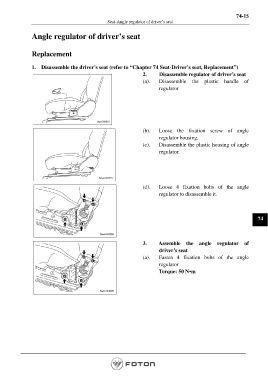

Seat-Angle regulator of driver’s seat

Angle regulator of driver’s seat

Replacement

1. Disassemble the driver’s seat (refer to “Chapter 74 Seat-Driver’s seat, Replacement”)
2. Disassemble regulator of driver’s seat
(a). Disassemble the plastic handle of
regulator

(b). Loose the fixation screw of angle
regulator housing.
(c). Disassemble the plastic housing of angle
regulator.

(d). Loose 4 fixation bolts of the angle
regulator to disassemble it.

74

3. Assemble the angle regulator of
driver’s seat
(a). Fasten 4 fixation bolts of the angle
regulator
Torque: 50 N•m
