P. 1494

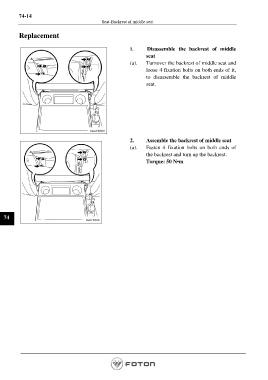

74-14
Seat-Backrest of middle seat
Replacement
1. Disassemble the backrest of middle
seat
(a). Turnover the backrest of middle seat and
loose 4 fixation bolts on both ends of it,
to disassemble the backrest of middle
seat.
2. Assemble the backrest of middle seat
(a). Fasten 4 fixation bolts on both ends of
the backrest and turn up the backrest.
Torque: 50 N•m
74
