5.
HINT:
A clear “click” shall be heard while connecting the connector of the cruise switch, please install it
again if this sound can’t be heard.

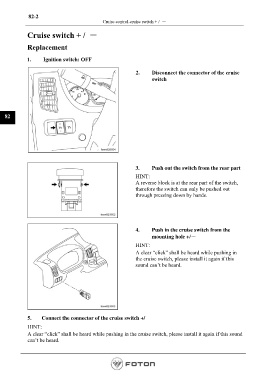

82-2 Connect the connector of the cruise switch
Cruise control-cruise switch + / -
Cruise switch + / -
Replacement
1. Ignition switch: OFF
2. Disconnect the connector of the cruise
switch
82
3. Push out the switch from the rear part
HINT:
A reverse block is at the rear part of the switch,
therefore the switch can only be pushed out
through pressing down by hands.
4. Push in the cruise switch from the
mounting hole +/-
HINT:
A clear “click” shall be heard while pushing in
the cruise switch, please install it again if this
sound can’t be heard.
5. Connect the connector of the cruise switch +/
HINT:
A clear “click” shall be heard while pushing in the cruise switch, please install it again if this sound
can’t be heard.
