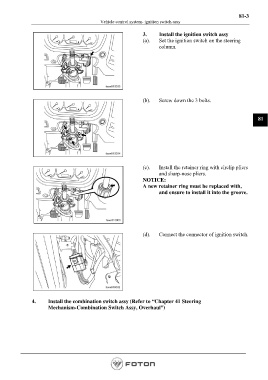

81-3
Vehicle control system- ignition switch assy

3. Install the ignition switch assy
(a). Set the ignition switch on the steering
column.

(b). Screw down the 3 bolts.

81

(c). Install the retainer ring with circlip pliers
and sharp-nose pliers.
NOTICE:
A new retainer ring must be replaced with,
and ensure to install it into the groove.

(d). Connect the connector of ignition switch.

4. Install the combination switch assy (Refer to “Chapter 41 Steering
Mechanism-Combination Switch Assy, Overhaul”)
