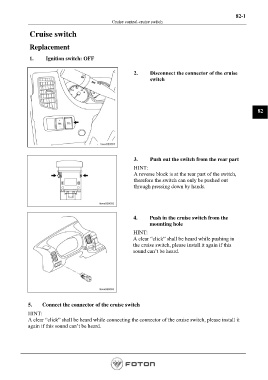

Page 1611 - Workshop Manual - Aumark (BJ1051)

82-1
Cruise control-cruise switch

Cruise switch

Replacement

1. Ignition switch: OFF

2. Disconnect the connector of the cruise
switch

82

3. Push out the switch from the rear part

HINT:
A reverse block is at the rear part of the switch,
therefore the switch can only be pushed out
through pressing down by hands.

4. Push in the cruise switch from the
mounting hole

HINT:
A clear “click” shall be heard while pushing in
the cruise switch, please install it again if this
sound can’t be heard.

5. Connect the connector of the cruise switch
HINT:
A clear “click” shall be heard while connecting the connector of the cruise switch, please install it
again if this sound can’t be heard.
