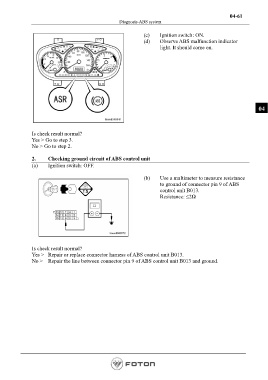

04-61
Diagnosis-ABS system

(c) Ignition switch: ON.
(d) Observe ABS malfunction indicator
light. It should come on.

04

Is check result normal?
Yes > Go to step 3.
No > Go to step 2.

2. Checking ground circuit of ABS control unit
(a) Ignition switch: OFF.

(b) Use a multimeter to measure resistance
to ground of connector pin 9 of ABS
control unit B013.
Resistance: ≤2Ω

Is check result normal?
Yes > Repair or replace connector harness of ABS control unit B013.
No > Repair the line between connector pin 9 of ABS control unit B013 and ground.
