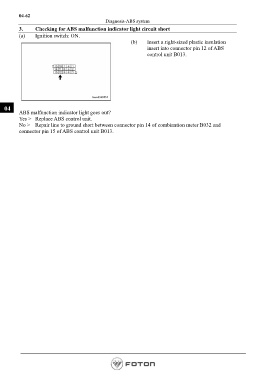

Page 206 - Workshop Manual - Aumark (BJ1051)
P. 206
04-62
Diagnosis-ABS system
3. Checking for ABS malfunction indicator light circuit short
(a) Ignition switch: ON.
(b) Insert a right-sized plastic insulation
insert into connector pin 12 of ABS
control unit B013.
04
ABS malfunction indicator light goes out?
Yes > Replace ABS control unit.
No > Repair line to ground short between connector pin 14 of combination meter B032 and
connector pin 15 of ABS control unit B013.
Page 206
