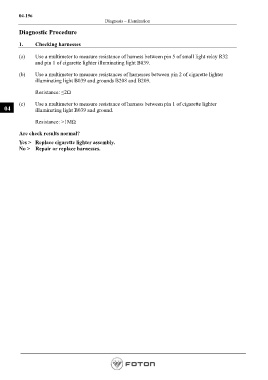

P. 340

04-196
                                                Diagnosis – Illumination

          Diagnostic Procedure

          1.     Checking harnesses


          (a)    Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
                 and pin 1 of cigarette lighter illuminating light B039.


          (b)    Use a multimeter to measure resistances of harnesses between pin 2 of cigarette lighter
                 illuminating light B039 and grounds B208 and B209.

                 Resistance: ≤2Ω

          (c)    Use a multimeter to measure resistance of harness between pin 1 of cigarette lighter
   04            illuminating light B039 and ground.


                 Resistance: >1MΩ

          Are check results normal?

          Yes >   Replace cigarette lighter assembly.
          No >    Repair or replace harnesses.
