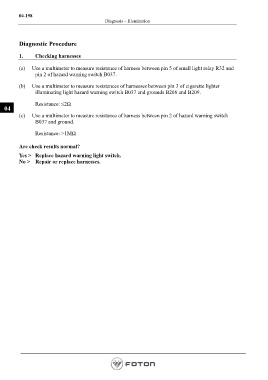

P. 342

04-198
                                                Diagnosis – Illumination



          Diagnostic Procedure


          1.     Checking harnesses

          (a)   Use a multimeter to measure resistance of harness between pin 5 of small light relay R32 and
                 pin 2 of hazard warning switch B037.

          (b)  Use a multimeter to measure resistances of harnesses between pin 3 of cigarette lighter
                 illuminating light hazard warning switch B037 and grounds B208 and B209.

                 Resistance: ≤2Ω
   04
          (c)   Use a multimeter to measure resistance of harness between pin 2 of hazard warning switch
                 B037 and ground.

                 Resistance: >1MΩ


          Are check results normal?
          Yes >   Replace hazard warning light switch.
          No >    Repair or replace harnesses.
