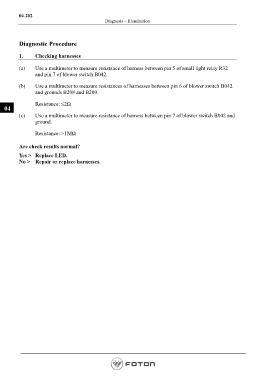

                                                Diagnosis – Illumination



          Diagnostic Procedure


          1.     Checking harnesses

          (a)    Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
                 and pin 7 of blower switch B042.

          (b)    Use a multimeter to measure resistances of harnesses between pin 6 of blower switch B042
                 and grounds B208 and B209.

                 Resistance: ≤2Ω
   04
          (c)    Use a multimeter to measure resistance of harness between pin 7 of blower switch B042 and
                 ground.

                 Resistance: >1MΩ


          Are check results normal?
          Yes >   Replace LED.
          No >    Repair or replace harnesses.
