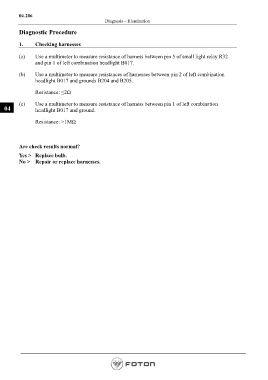

04-206
                                                Diagnosis – Illumination

          Diagnostic Procedure

          1.     Checking harnesses


          (a)    Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
                 and pin 1 of left combination headlight B017.


          (b)    Use a multimeter to measure resistances of harnesses between pin 2 of left combination
                 headlight B017 and grounds B204 and B205.

                 Resistance: ≤2Ω

          (c)    Use a multimeter to measure resistance of harness between pin 1 of left combination
   04            headlight B017 and ground.


                 Resistance: >1MΩ




          Are check results normal?
          Yes >   Replace bulb.
          No >    Repair or replace harnesses.
