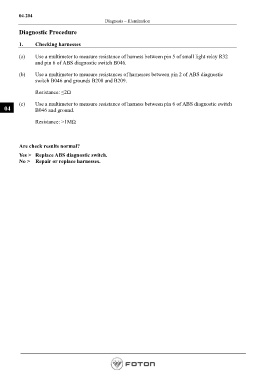

P. 348

04-204
                                                Diagnosis – Illumination

          Diagnostic Procedure

          1.     Checking harnesses


          (a)    Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
                 and pin 6 of ABS diagnostic switch B046.


          (b)    Use a multimeter to measure resistances of harnesses between pin 2 of ABS diagnostic
                 switch B046 and grounds B208 and B209.

                 Resistance: ≤2Ω

          (c)    Use a multimeter to measure resistance of harness between pin 6 of ABS diagnostic switch
   04            B046 and ground.


                 Resistance: >1MΩ




          Are check results normal?
          Yes >   Replace ABS diagnostic switch.
          No >    Repair or replace harnesses.
