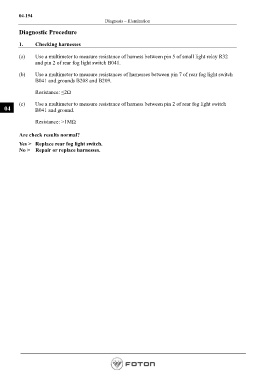

P. 338

04-194
                                                Diagnosis – Illumination

          Diagnostic Procedure

          1.     Checking harnesses


          (a)    Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
                 and pin 2 of rear fog light switch B041.


          (b)    Use a multimeter to measure resistances of harnesses between pin 7 of rear fog light switch
                 B041 and grounds B208 and B209.

                 Resistance: ≤2Ω

          (c)    Use a multimeter to measure resistance of harness between pin 2 of rear fog light switch
   04            B041 and ground.


                 Resistance: >1MΩ

          Are check results normal?

          Yes >   Replace rear fog light switch.
          No >    Repair or replace harnesses.
