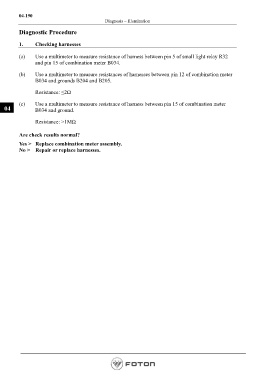

P. 334

04-190
                                                Diagnosis – Illumination

          Diagnostic Procedure

          1.     Checking harnesses


          (a)    Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
                 and pin 15 of combination meter B034.


          (b)    Use a multimeter to measure resistances of harnesses between pin 12 of combination meter
                 B034 and grounds B204 and B205.

                 Resistance: ≤2Ω

          (c)    Use a multimeter to measure resistance of harness between pin 15 of combination meter
   04            B034 and ground.


                 Resistance: >1MΩ

          Are check results normal?

          Yes >   Replace combination meter assembly.
          No >    Repair or replace harnesses.
