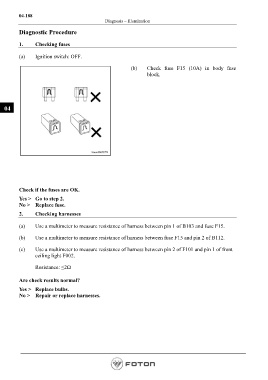

Page 332 - Workshop Manual - Aumark (BJ1051)

04-188
Diagnosis – Illumination

Diagnostic Procedure

1. Checking fuses

(a) Ignition switch: OFF.

(b) Check fuse F15 (10A) in body fuse
block.

04

Check if the fuses are OK.
Yes > Go to step 2.
No > Replace fuse.
2. Checking harnesses

(a) Use a multimeter to measure resistance of harness between pin 1 of B103 and fuse F15.

(b) Use a multimeter to measure resistance of harness between fuse F15 and pin 2 of B112.

(c) Use a multimeter to measure resistance of harness between pin 2 of F101 and pin 1 of front
ceiling light F002.

Resistance: ≤2Ω

Are check results normal?
Yes > Replace bulbs.
No > Repair or replace harnesses.
