Diagnosis – Illumination
Courtesy Light At Neither Side Comes On

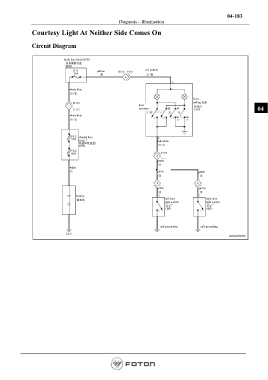

Circuit Diagram
body fuse block B050
yellow red-yellow
white-blue
front
ceiling light
door
courtesy off off 04
white-blue on on
chassis fuse
block 1 red-white
green
white
green green
green green
battery
left door right door
light switch light switch
self-grounding self-grounding
