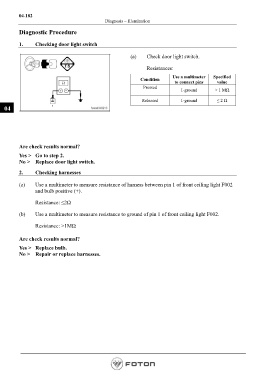

Page 326 - Workshop Manual - Aumark (BJ1051)
P. 326

04-182
                                                Diagnosis – Illumination

          Diagnostic Procedure

          1.     Checking door light switch


                                                           (a)    Check door light switch.

                                                                 Resistances:

                                                                              Use a multimeter   Specified
                                                               Condition
                                                                               to connect pins   value
                                                                 Pressed
                                                                                 1-ground       > 1 MΩ
                                                                Released         1-ground        ≤ 2 Ω
   04







          Are check results normal?
          Yes >  Go to step 2.
          No >  Replace door light switch.

          2.     Checking harnesses

          (a)    Use a multimeter to measure resistance of harness between pin 1 of front ceiling light F002
                 and bulb positive (+).

                 Resistance: ≤2Ω

          (b)    Use a multimeter to measure resistance to ground of pin 1 of front ceiling light F002.


                 Resistance: >1MΩ

          Are check results normal?

          Yes >   Replace bulb.
          No >    Repair or replace harnesses.
