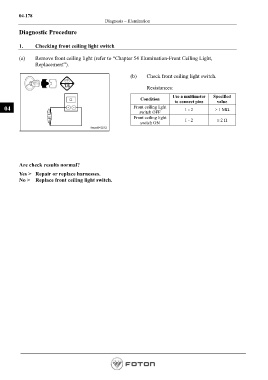

04-178
                                                Diagnosis – Illumination

          Diagnostic Procedure


          1.     Checking front ceiling light switch

          (a)    Remove front ceiling light (refer to “Chapter 54 Illumination-Front Ceiling Light,
                 Replacement”).

                                                           (b)    Check front ceiling light switch.


                                                                 Resistances:
                                                                              Use a multimeter   Specified
                                                               Condition
                                                                               to connect pins   value
   04                                                       Front ceiling light    1 - 2        > 1 MΩ
                                                               switch OFF
                                                            Front ceiling light    1 - 2         ≤ 2 Ω
                                                               switch ON







          Are check results normal?
          Yes >   Repair or replace harnesses.
          No >    Replace front ceiling light switch.
