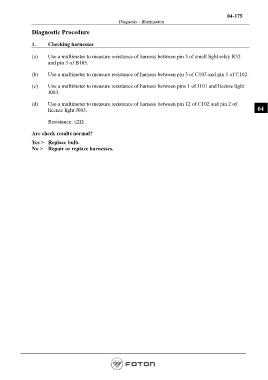

04-175
Diagnosis – Illumination
Diagnostic Procedure
1. Checking harnesses
(a) Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
and pin 3 of B105.
(b) Use a multimeter to measure resistance of harness between pin 3 of C105 and pin 1 of C102.
(c) Use a multimeter to measure resistance of harness between pins 1 of J101 and license light
J003.
(d) Use a multimeter to measure resistance of harness between pin 12 of C102 and pin 2 of
license light J003. 04
Resistance: ≤2Ω
Are check results normal?
Yes > Replace bulb.
No > Repair or replace harnesses.
