P. 366

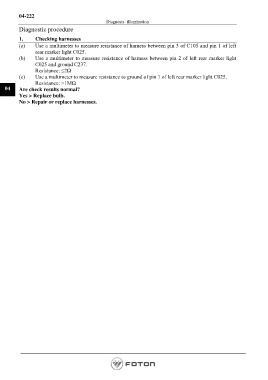

04-222
                                                Diagnosis- illumination
          Diagnostic procedure

          1.     Checking harnesses
          (a)    Use a multimeter to measure resistance of harness between pin 3 of C105 and pin 1 of left
                 rear marker light C025.
          (b)    Use a multimeter to measure resistance of harness between pin 2 of left rear marker light
                 C025 and ground C237.
                 Resistance: ≤2Ω
          (c)    Use a multimeter to measure resistance to ground of pin 1 of left rear marker light C025.
                 Resistance: >1MΩ
   04     Are check results normal?
          Yes > Replace bulb.
          No > Repair or replace harnesses.
