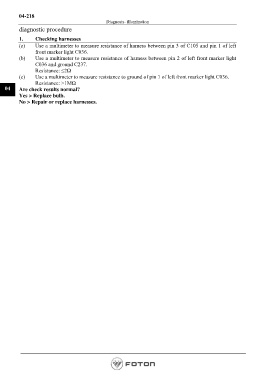

Page 362 - Workshop Manual - Aumark (BJ1051)
P. 362

04-218
                                                Diagnosis- illumination
          diagnostic procedure

          1.     Checking harnesses
          (a)    Use a multimeter to measure resistance of harness between pin 3 of C105 and pin 1 of left
                 front marker light C036.
          (b)    Use a multimeter to measure resistance of harness between pin 2 of left front marker light
                 C036 and ground C237.
                 Resistance: ≤2Ω
          (c)    Use a multimeter to measure resistance to ground of pin 1 of left front marker light C036.
                 Resistance: >1MΩ
   04     Are check results normal?
          Yes > Replace bulb.
          No > Repair or replace harnesses.
