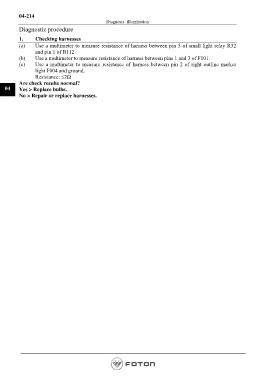

P. 358

04-214
                                                Diagnosis- illumination
          Diagnostic procedure

          1.     Checking harnesses
          (a)    Use a multimeter to measure resistance of harness between pin 5 of small light relay R32
                 and pin 1 of B112.
          (b)    Use a multimeter to measure resistance of harness between pins 1 and 3 of F101.
          (c)    Use a multimeter to measure resistance of harness between pin 2 of right outline marker
                 light F004 and ground.
                 Resistance: ≤2Ω
          Are check results normal?
   04     Yes > Replace bulbs.
          No > Repair or replace harnesses.
