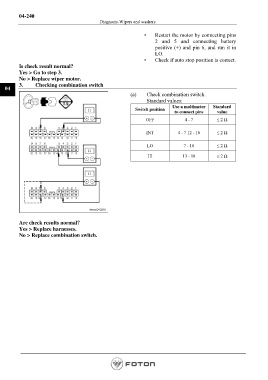

Page 384 - Workshop Manual - Aumark (BJ1051)

04-240
Diagnosis-Wipers and washers

• Restart the motor by connecting pins
2 and 5 and connecting battery
positive (+) and pin 6, and run it in
LO.
• Check if auto stop position is correct.
Is check result normal?
Yes > Go to step 3.
No > Replace wiper motor.
3. Checking combination switch
04
(a) Check combination switch.
Standard values:
Use a multimeter Standard
Switch position
to connect pins value
OFF 4 - 7 ≤ 2 Ω

INT 4 - 7 12 - 16 ≤ 2 Ω

LO 7 - 18 ≤ 2 Ω
HI 13 - 18 ≤ 2 Ω

Are check results normal?
Yes > Replace harnesses.
No > Replace combination switch.
