P. 432
04-288
Diagnosis-Power Windows

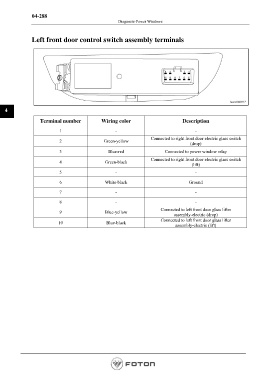

Left front door control switch assembly terminals
4
Terminal number Wiring color Description
1 - -
Connected to right front door electric glass switch
2 Green-yellow
(drop)
3 Blue-red Connected to power window relay
Connected to right front door electric glass switch
4 Green-black
(lift)
5 - -
6 White-black Ground
7 - -
8 - -
Connected to left front door glass lifter
9 Blue-yellow
assembly-electric (drop)
Connected to left front door glass lifter
10 Blue-black
assembly-electric (lift)
