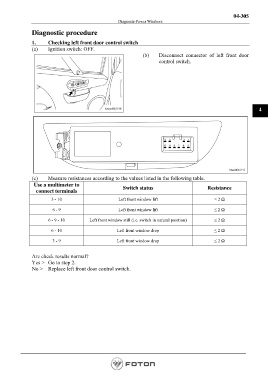

04-305
Diagnosis-Power Windows

Diagnostic procedure

1. Checking left front door control switch
(a) Ignition switch: OFF.
(b) Disconnect connector of left front door
control switch.

4

(c) Measure resistances according to the values listed in the following table.
Use a multimeter to Switch status Resistance
connect terminals
3 - 10 Left front window lift ≤ 2 Ω

6 - 9 Left front window lift ≤ 2 Ω

6 - 9 - 10 Left front window still (i.e. switch in natural position) ≤ 2 Ω

6 - 10 Left front window drop ≤ 2 Ω

3 - 9 Left front window drop ≤ 2 Ω

Are check results normal?
Yes > Go to step 2.
No > Replace left front door control switch.
