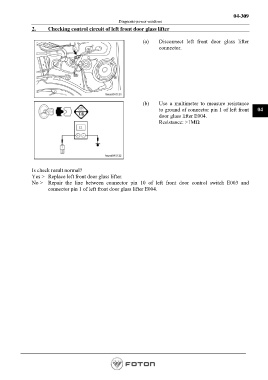

P. 453
04-309
Diagnosis-power windows
2. Checking control circuit of left front door glass lifter
(a) Disconnect left front door glass lifter
connector.
(b) Use a multimeter to measure resistance
to ground of connector pin 1 of left front 04
door glass lifter E004.
Resistance: >1MΩ
Is check result normal?
Yes > Replace left front door glass lifter.
No > Repair the line between connector pin 10 of left front door control switch E003 and
connector pin 1 of left front door glass lifter E004.
