P. 459
04-315

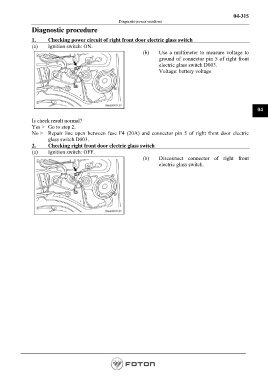

Diagnosis-power windows
Diagnostic procedure
1. Checking power circuit of right front door electric glass switch
(a) Ignition switch: ON.
(b) Use a multimeter to measure voltage to
ground of connector pin 5 of right front
electric glass switch D003.
Voltage: battery voltage
04
Is check result normal?
Yes > Go to step 2.
No > Repair line open between fuse F4 (20A) and connector pin 5 of right front door electric
glass switch D003.
2. Checking right front door electric glass switch
(a) Ignition switch: OFF.
(b) Disconnect connector of right front
electric glass switch.
