04-329

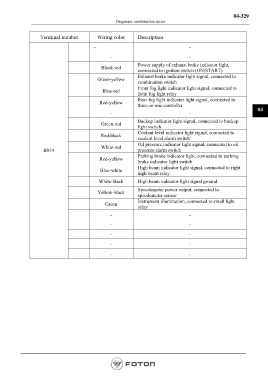

Diagnosis- combination meter

Terminal number Wiring color Description
- -
- -

Black-red Power supply of exhaust brake indicator light,
connected to ignition switch (ON/START)
Green-yellow Exhaust brake indicator light signal, connected to
combination switch
Blue-red Front fog light indicator light signal, connected to
front fog light relay
Rear fog light indicator light signal, connected to
Red-yellow
three-in-one controller
- - 04

Green-red Backup indicator light signal, connected to backup
light switch
Coolant level indicator light signal, connected to
Red-black
coolant level alarm switch
White-red Oil pressure indicator light signal, connected to oil
B034 pressure alarm switch
Red-yellow Parking brake indicator light, connected to parking
brake indicator light switch
Blue-white High beam indicator light signal, connected to right
high beam relay
White-black High beam indicator light signal ground

Speedometer power output, connected to
Yellow-black
speedometer sensor
Instrument illumination, connected to small light
Green
relay
- -

- -

- -
- -

- -
