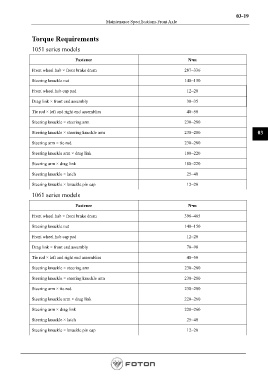

03-19
Maintenance Specifications-Front Axle

Torque Requirements

1051 series models

Fastener N•m

Front wheel hub × front brake drum 287~336

Steering knuckle nut 140~150
Front wheel hub cap pad 12~20

Drag link × front end assembly 30~35

Tie rod × left and right end assemblies 40~50

Steering knuckle × steering arm 230~280

Steering knuckle × steering knuckle arm 230~280 03

Steering arm × tie rod 230~280

Steering knuckle arm × drag link 180~220

Steering arm × drag link 180~220

Steering knuckle × latch 25~40
Steering knuckle × knuckle pin cap 12~20

1061 series models

Fastener N•m

Front wheel hub × front brake drum 396~465

Steering knuckle nut 140~150

Front wheel hub cap pad 12~20

Drag link × front end assembly 70~90

Tie rod × left and right end assemblies 40~50

Steering knuckle × steering arm 230~280
Steering knuckle × steering knuckle arm 230~280

Steering arm × tie rod 230~280

Steering knuckle arm × drag link 220~260

Steering arm × drag link 220~260

Steering knuckle × latch 25~40

Steering knuckle × knuckle pin cap 12~20
