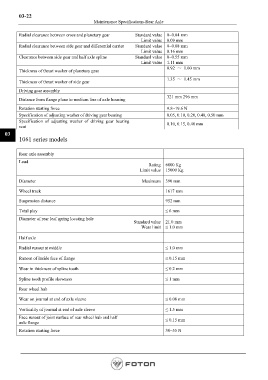

Page 96 - Workshop Manual - Aumark (BJ1051)

03-22
Maintenance Specifications-Rear Axle

Radial clearance between cross and planetary gear Standard value 0~0.04 mm
Limit value 0.09 mm
Radial clearance between side gear and differential carrier Standard value 0~0.08 mm
Limit value 0.16 mm
Clearance between side gear and half axle spline Standard value 0~0.55 mm
Limit value 1.11 mm
0.92 ～ 1.00 mm
Thickness of thrust washer of planetary gear

1.35 ～ 1.45 mm
Thickness of thrust washer of side gear

Driving gear assembly
321 mm 296 mm
Distance from flange plane to medium line of axle housing

Rotation starting force 9.8~19.6 N
Specification of adjusting washer of driving gear bearing 0.05, 0.10, 0.20, 0.40, 0.50 mm
Specification of adjusting washer of driving gear bearing 0.10, 0.15, 0.40 mm
seat
03
1061 series models

Rear axle assembly
Load
Rating 6000 Kg
Limit value 15000 Kg

Diameter Maximum 390 mm

Wheel track 1617 mm

Suspension distance 952 mm

Total play ≤ 6 mm
Diameter of rear leaf spring locating hole
Standard value 21.0 mm
Wear limit ≤ 1.0 mm

Half axle

Radial runout at middle ≤ 1.0 mm

Runout of inside face of flange ≤ 0.15 mm

Wear in thickness of spline tooth ≤ 0.2 mm
Spline tooth profile skewness ≤ 1 mm

Rear wheel hub
Wear on journal at end of axle sleeve ≤ 0.08 mm

Verticality of journal at end of axle sleeve ≤ 1.5 mm
Face runout of joint surface of rear wheel hub and half ≤ 0.15 mm
axle flange
Rotation starting force 30~55 N
