03-25

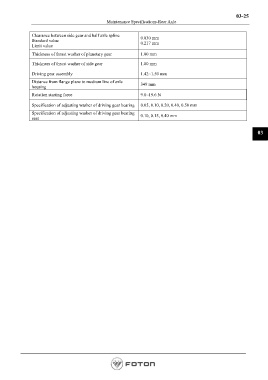

Maintenance Specifications-Rear Axle
Clearance between side gear and half axle spline 0.030 mm
Standard value 0.217 mm
Limit value
Thickness of thrust washer of planetary gear 1.00 mm
Thickness of thrust washer of side gear 1.00 mm
Driving gear assembly 1.42~1.50 mm
Distance from flange plane to medium line of axle 349 mm
housing
Rotation starting force 9.8~19.6 N
Specification of adjusting washer of driving gear bearing 0.05, 0.10, 0.20, 0.40, 0.50 mm
Specification of adjusting washer of driving gear bearing 0.10, 0.15, 0.40 mm
seat
03
