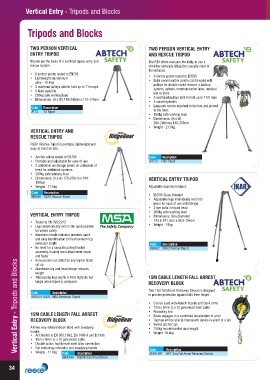

Page 34 - Confined Space Catalogue

Vertical Entry - Tripods and Blocks

Tripods and Blocks

TWO PERSON VERTICAL TWO PERSON VERTICAL ENTRY
ENTRY TRIPOD AND RESCUE TRIPOD

Tripods are the basis of a confined space entry and The RT3 offers rescuers the abilty to use a
rescue system. stretcher vertically lifting the casualty clear of
the entrance.
• 6 anchor points tested to EN795 • 6 anchor points tested to EN795
• Lightweight aluminimum • Extra swivel anchor points can be used with
alloy - 19.4kg pulleys for double roped rescuer, a backup
• 3 overhead pulleys able to hold up to 11m rope system, airlines, communication lines, medical
• 3 fixed eyebolts
kits or tools
• 250kg safe working load • 3 overhead pulleys able to hold up to 11m rope
• Dimensions: (H x W) 140-240cm x 110-170cm
• 3 swivel eyebolts
• Lanyards can be attached to the feet and pinned
Code Description
ATT3 T3 Tripod to the floor.
• 250kg safe working load
• Dimensions: (H x W)
200-260cm x 130-200cm
• Weight - 21.5kg
VERTICAL ENTRY AND
RESCUE TRIPOD
RGR1 Rescue Tripod is portable, lightweight and Davit
easy to erect on site.

• Anchor points tested to EN795 Code Description
• Portable and adjustable for ease of use ATRT3 RT3 Tripod
• 2 additional anchorage points on underside of
head for additional systems
• 200kg safe working load
• Dimensions: (h x w) 170-270cm x 100- VERTICAL ENTRY TRIPOD
180cm
• Weight - 17.5kg Adjustable aluminium tripod.
Code Description
RIRGR1 RGR1 Rescue Tripod • EN795 Class B tested
• Adjustable legs inidividually lock into
place for ease of use and storage
• 2 eye bolts in tripod head
• 200kg safe working load
VERTICAL ENTRY TRIPOD • Dimensions: (H x diameter)
• Tested to EN 795:2012 143.8-241.3cm x 96.5-156cm
• Legs automatically lock in the open position • Weight - 19kg
for added safety
• Maximum height indicator provides quick
and easy identification of the maximum leg
extension length Code Description
• No need for a separate pulley/bracket IGDBA2 DBA2 Rescue Tripod
assembly, making hoist attachment easier
and faster
• Accessories can attach to any leg for faster
Vertical Entry - Tripods and Blocks
set up
• Aluminium leg and head design reduces
weight
• Telescoping legs (up to 2.45m high) do not 15M CABLE LENGTH FALL ARREST
tangle when tripod is collapsed RECOVERY BLOCK
This 15m Fall Arrest Recovery Device is designed
Code Description to provide protection against falls from height.
MSA10116521 MSA Workman Tripod
• Can be used with Abtech tripods and Davit arms
• 15m x 5mm (L x D) galvanized steel cable
• Retracting line
15M CABLE LENGTH FALL ARREST • Brake engages in a controlled deceleration in a fall
RECOVERY BLOCK • Topman will be able to manoeuvre device in event of a fall
• Swivel anchor eye
A three way retrieval block fitted with steadying • 150kg recommended user weight
handle. • Weight: 10.4kg
• Accredited to EN 360:1992, EN 1496 A and B:1996
• 15m x 5mm (L x D) galvanized cable
• Double action high tensile steel alloy connectors
• Fall indicating connector and steadying handle Code Description
• Weight - 11.6kg Code Description ATAB15RT BRT Torq Fall Arrest Recovery Device
RIRGA4H RGA4H Fall Arrest Block

34
