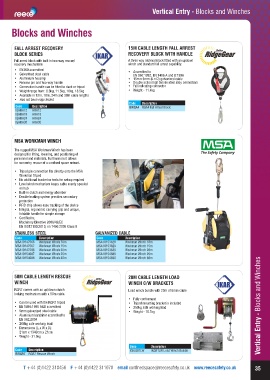

Page 35 - Confined Space Catalogue

Vertical Entry - Blocks and Winches

Blocks and Winches

FALL ARREST RECOVERY 15M CABLE LENGTH FALL ARREST
BLOCK SERIES RECOVERY BLOCK WITH HANDLE
Fall arrest block with built in two-way rescue/ A three way retrieval block fitted with an updown
recovery mechanism winch and standard fall arrest capability.
• EN360 accredited • Accredited to
• Galvanised steel cable EN 360:1992, EN 1496 A and B:1996
• Aluminium housing • 15m x 5mm (L x D) galvanized cable
• Release pin and two-way handle • Double action high tensile steel alloy connectors
• Connection handle can be fitted to davit or tripod • Fall indicating connector
• Weight range from: 8.3kg, 11.5kg, 16kg, 18.5kg • Weight - 11.4kg
• Available in 12m, 18m, 24m and 30m cable lengths
• Has not been edge tested
Code Description
Code Description RIRGA4 RGA4 Fall Arrest Block
IGHRA12 HRA12
IGHRA18 HRA18
IGHRA24 HRA24
IGHRA30 HRA30

MSA WORKMAN WINCH

The rugged MSA Workman Winch has been
designed for lifting, lowering, and positioning of
personnel and materials. Furthermore it allows
for non-entry rescue of a confined space entrant.

• Tripod pin connection fits directly onto the MSA
Workman Tripod
• No additional bracket or tools for set-up required
• Level wind mechanism keeps cable evenly spooled
on hub
• Built-in clutch and energy absorber
• Double braking system provides secondary
protection
• RFID chip allows easy tracking of the device
• Integral, ergonomic carrying grip and unique,
foldable handle for simple storage
• Certified to;
Machinery Directive 2006/42/EC
EN ISO12100:2010, en 1496:2006 Class B
STAINLESS STEEL GALVANIZED CABLE
Code Description Code Description
MSA10147566 Workman Winch 10m MSA10153828 Workman Winch 10m
MSA10147567 Workman Winch 15m MSA10153829 Workman Winch 15m
MSA10147296 Workman Winch 20m MSA10153830 Workman Winch 20m
MSA10154687 Workman Winch 25m MSA10154689 Workman Winch 25m
MSA10154688 Workman Winch 30m MSA10154690 Workman Winch 30m

50M CABLE LENGTH RESCUE 20M CABLE LENGTH LOAD
WINCH WINCH C/W BRACKETS
RGR7 comes with an up/down clutch Load winch bundle with 20m of 6mm cable
locking mechanism with a 50m cable.
• Fully conformant
• Can be used with the RGR1 tripod • Tripod mounting bracket is included
• EN 1496:1996 A&B accredited • 250kg safe working load Vertical Entry - Blocks and Winches
• 5mm galvanized steel cable • Weight - 10.1kg
• Aluminium karabiner accredited to
EN 362:2004
• 200kg safe working load
• Dimensions (L x W x D):
21cm x 1340cm x 21cm
• Weight - 21.5kg

Code Description
Code Description IGIKGBTLW IKGBTLW Load Winch Bundle
RIRGR7 RGR7 Rescue Winch
